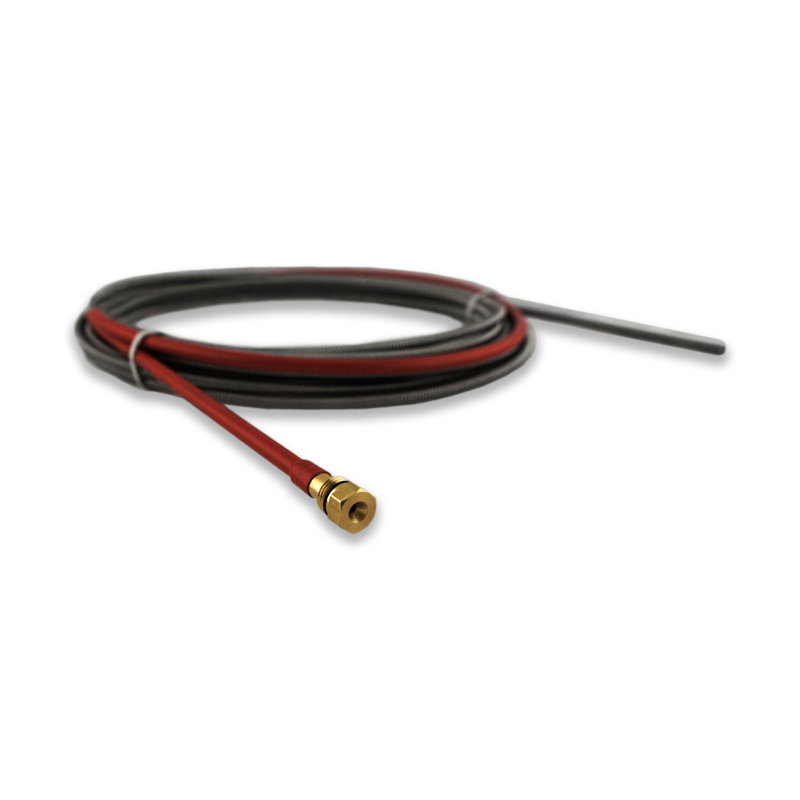

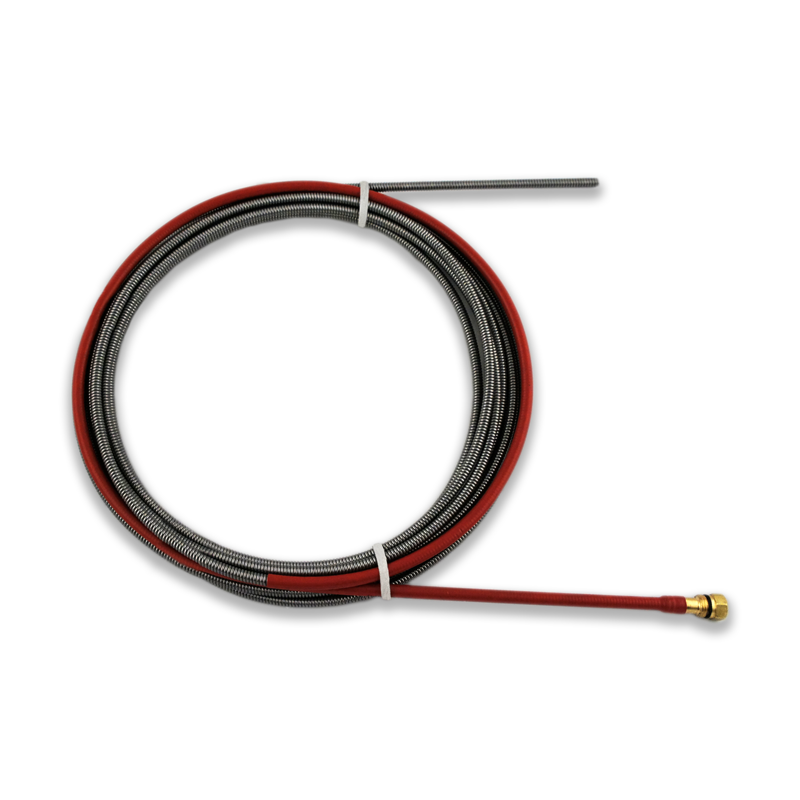

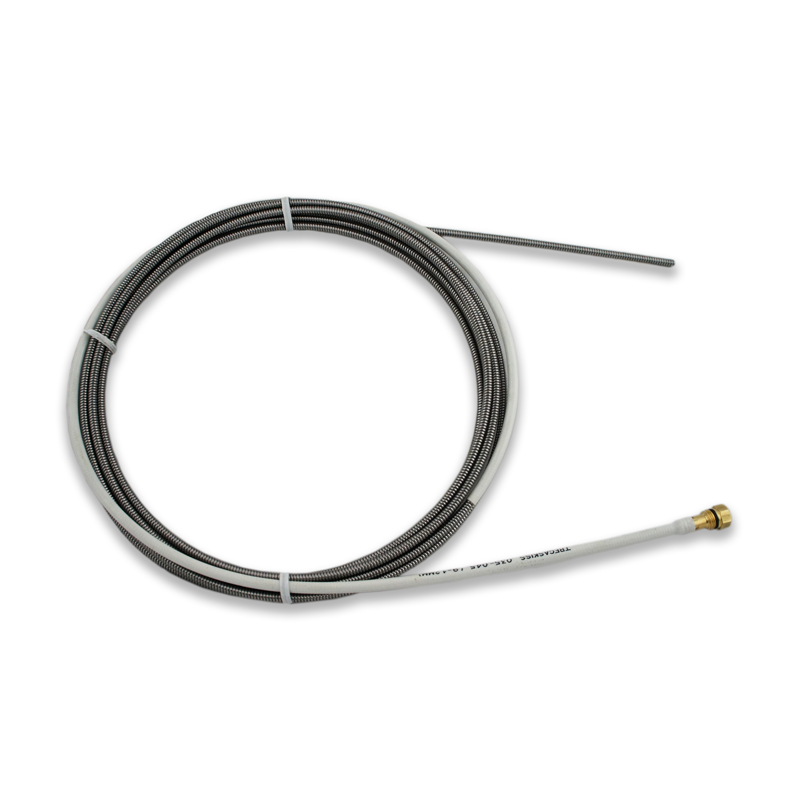

Conventional liners for semi-automatic and robotic MIG welding guns are made of high carbon music wire for smooth wire feed and long life.
Available for mild steel, aluminum, stainless steel and flux-cored wire in lengths of up to 25 feet (7.6 m) for all wire sizes, these rear-loading conventional liners thread in with no need for set screws.
| Part Number | Description |
|---|---|
| 415-23-15 | for 0.023″ wire, 15′ length; high carbon steel – round wound |
| 415-30-25 | for 0.030″ wire, 25′ length; high carbon steel – round wound |
| 415-35-6 | for 0.035″ – 0.045″ wire, 6′ length; high carbon steel – round wound |
| 415-35-10 | for 0.035″ – 0.045″ wire, 10′ length; high carbon steel – round wound |
| 415-35-15 | for 0.035″ – 0.045″ wire, 15′ length; high carbon steel – round wound |
| 415-35-25 | for 0.035″ – 0.045″ wire, 25′ length; high carbon steel – round wound |
| 415-116-6 | for 0.045″ – 1/16″ wire, 6′ length; high carbon steel – round wound |
| 415-116-10 | for 0.045″ – 1/16″ wire, 10′ length; high carbon steel – round wound |
| 415-116-15 | for 0.045″ – 1/16″ wire, 15′ length; high carbon steel – round wound |
| 415-116-25 | for 0.045″ – 1/16″ wire, 25′ length; high carbon steel – round wound |
| 415-564-6 | for 1/16″ – 5/64″ wire, 6′ length; high carbon steel – round wound |
| 415-564-10 | for 1/16″ – 5/64″ wire, 10′ length; high carbon steel – round wound |
| 415-564-15 | for 1/16″ – 5/64″ wire, 15′ length; high carbon steel – round wound |
| 415-564-25 | for 1/16″ – 5/64″ wire, 25′ length; high carbon steel – round wound |
| 415-332-15 | for 0.078″ – 3/32″ wire, 15′ length; high carbon steel – round wound |
| 415-332-25 | for 0.078″ – 3/32″ wire, 25′ length; high carbon steel – round wound |
| Part Number | Description |
|---|---|
| 415-45-01 | for 0.035″ – 3/64″ wire, 6′ length |
| 415-45-02 | for 0.035″ – 3/64″ wire, 10′ length |
| 415-45-03 | for 0.035″ – 3/64″ wire, 15′ length |
| 415-45-04 | for 0.035″ – 3/64″ wire, 25′ length |
| 415-116-21 | for 3/64″ – 1/16″ wire, 6′ length |
| 415-116-22 | for 3/64″ – 1/16″ wire, 10′ length |
| 415-116-23 | for 3/64″ – 1/16″ wire, 15′ length |
| 415-116-26 | for 3/64″ – 1/16″ wire, 25′ length |
| 415-25 | for 0.030″ – 1/16″ wire, 8″ length; bronze jump liner for use with liner |
| 415-25-13 | for 0.030″ – 1/16″ wire, 13″ length; bronze jump liner for use with liner |
| Part Number | Description |
|---|---|
| 415-45-01 | for 0.035″ – 3/64″ wire, 6′ length |
| 415-45-02 | for 0.035″ – 3/64″ wire, 10′ length |
| 415-45-03 | for 0.035″ – 3/64″ wire, 15′ length |
| 415-45-04 | for 0.035″ – 3/64″ wire, 25′ length |
| 415-116-21 | for 3/64″ – 1/16″ wire, 6′ length |
| 415-116-22 | for 3/64″ – 1/16″ wire, 10′ length |
| 415-116-23 | for 3/64″ – 1/16″ wire, 15′ length |
| 415-116-26 | for 3/64″ – 1/16″ wire, 25′ length |
| 415-25 | for 0.030″ – 1/16″ wire, 8″ length; bronze jump liner for use with liner |
| 415-25-13 | for 0.030″ – 1/16″ wire, 13″ length; bronze jump liner for use with liner |
| Part Number | Description |
|---|---|
| 495-18-35 | for 0.035″ – 0.045″ wire, 26″ length |
| 495-18-116 | for 0.052″ – 1/16″ wire, 26″ length |
